Composit Material - Cladded Busbars
Composite Material - Cladded Busbars
Production
ISO9001, ISO2000, ISO140-20040 certified production, established in 2007
Constantly growing yield of ~600 tons per year (2018)
Collection of national patents and IP for the clad material production

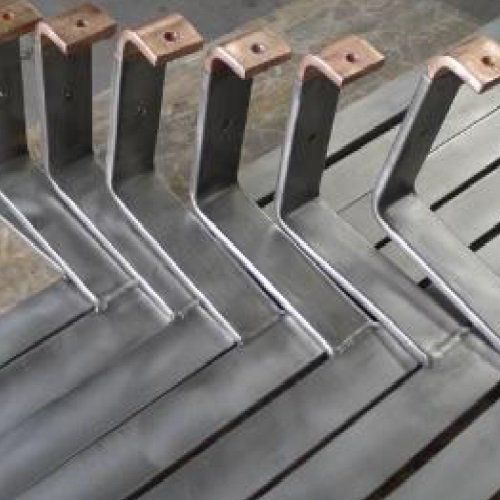

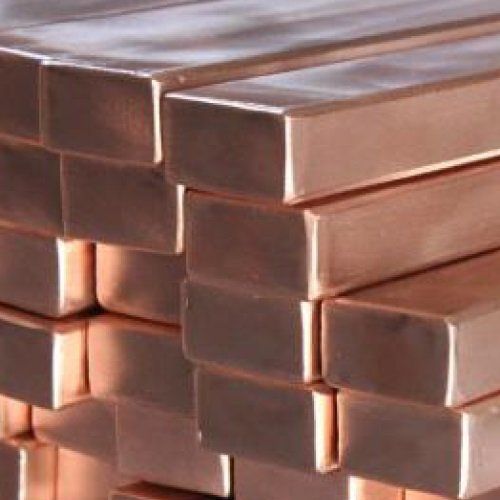

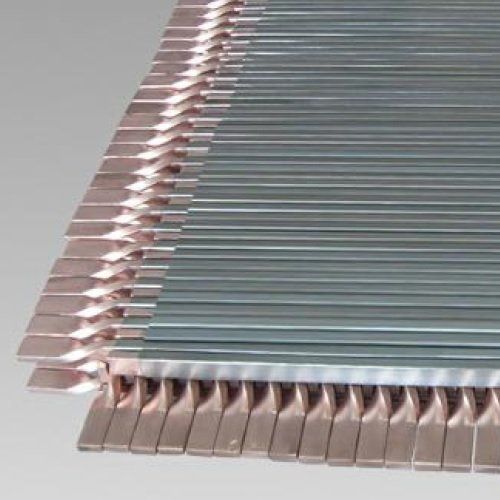

Titanium / Copper - Bars

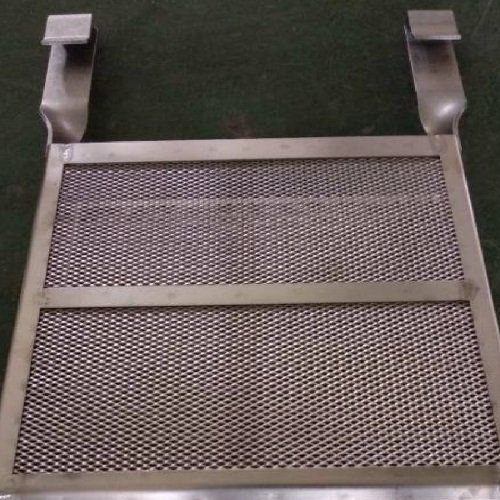

Ti/Cu anode, rectangle and round bars with coating material Ti ASTM B265 Grade 1. Hanger bar copper T2 or TU2 for anode electroplating and PCB and electrolysis industry.
Clad material: Ti acc. to No. 3.7025 or 3.7025 or 3.7055, ASTM B265 Grade 1
Core material: Cu acc. to E-Cu58, CU-ETP, CW004A, UNS No. C 11000 acc. to SE-Cu, CU-HCP, CW021A, UNS No.C 10300
Dimensions:
Round 6,35 - 78mm (1/4" - 3")
Rectangle-flat up to 20 x 120 mm (0.8" x 4")
Customized length per drawing and built to order
Titanium / Copper - Wires
Titanium clad copper wires and coils with OD3 OD4 OD5 OD6 OD6.35 with material Gr1 or Gr2 and copper T2 or TU2
Clad material: Ti acc. to No. 37025 or 37025 or 3.7055, ASTM B265 Grade 1
Core material: Cu acc. to E-Cu58, CU-ETP, CW004A, UNS No. C 11000 acc. to SE-Cu, CU-HCP, CW021A, UNS No.C 10300
Dimensions: 2 – 6.35 mm 0,078" – 1/4"
Length can be 100 meters without joints
Zirconium / Copper
Zr/Cu rectangle and round bars with coating material Zr702. Hanger bar copper T2 or TU2.
Clad material: Zr702 acc. to ASTM B523/ASME SB523 DIN 2462 D3/T3 or closer
Core material: Cu acc. to E-Cu58, CU-ETP, CW004A, UNS No. C 11000 acc. to SE-Cu, CU-HCP, CW021A, UNS No.C 10300
Dimensions:
10x40mm, 10x52mm, 12x42mm, 25mm Diameter or custom built to order
Zirconium / Copper

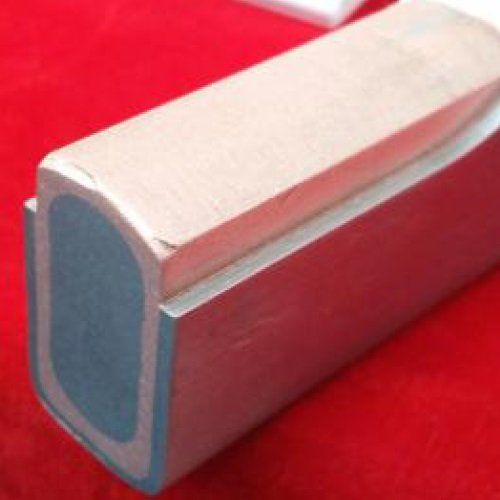

Titanium clad aluminum round and square bars and rods with material Ti ASTM B265 Gr1 and Alu 1050/1060/1100
Clad material: Ti acc. to No. 3.7025 or 3.7025 or 3.7055, ASTM B265 Grade 1
Core material: Alu acc. to 1050, 1.060, 1100
Normal Size: 12.7x12.7mm, 20x20mm, OD20,22, 25, 40, 45mm
Or custom built to order

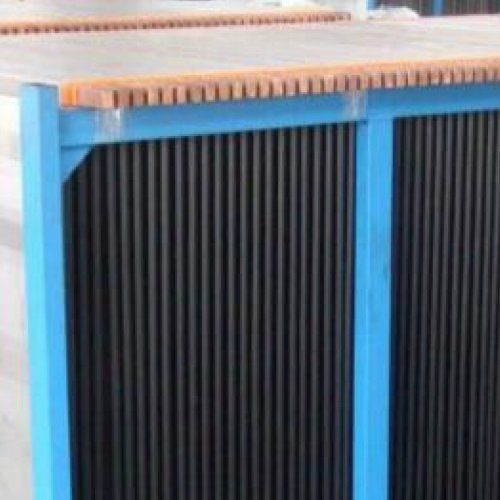

Permanent stainless steel cathodes
Busbar made of stainless-steel 316L/304 and copper C11000 or carbon steel(from outside to inside)
Normal size: 25x38x1350mm or built to order
Cathode Sheet: Stainless Steel AISI 316-L or LDX2101
Normal Size: 3/3.25x1048x1238mm or built to order
Tolerance as follows,
Flatness tolerance: 2.0mm when sheet is hung from top edge
Camber tolerance: 1.0mm
Parallel tolerance: 1.0mm wide, datum opposite edge
Squareness tolerance: diagonal dimensions to be within 1.5mm of each side
Sheet finish: both sides 2B cold-rolled and annealed
Surface roughness: 0.25 to 0.60 Ra in accordance within ISO/R1302, sheet to be free from burrs and sharp edges.
